THERMAL IN-LINE CLIP-ON RIFLESCOPE TI-GEAR-C675

Loading...

The TI-GEAR-C675 is the professional-grade thermal clip-on sight for aiming and engagement designed to work seamlessly with a wide variety of firearms and daytime scopes. The TI-GEAR-C675 is a plug-and-play unit, deployed in mere seconds with no zeroing needed. It is also a great tool for reconnaissance and tactical surveillance.

The latest generation silent and Auto-NUC sensor is at the base of the TI-GEAR-C675. GSCI proprietary hardware and software solutions are built around the sensor and offer exceptional image quality along with unique tools for added tactical advantage and user safety.

The TI-GEAR-C675 is fully dust- and waterproof, meets and exceeds modern standards. The TI-GEAR-C675 is designed for both professional users and also firearms enthusiasts. It is a robust, reliable tool for long-term, intensive use in any environment, in any lighting or weather conditions.

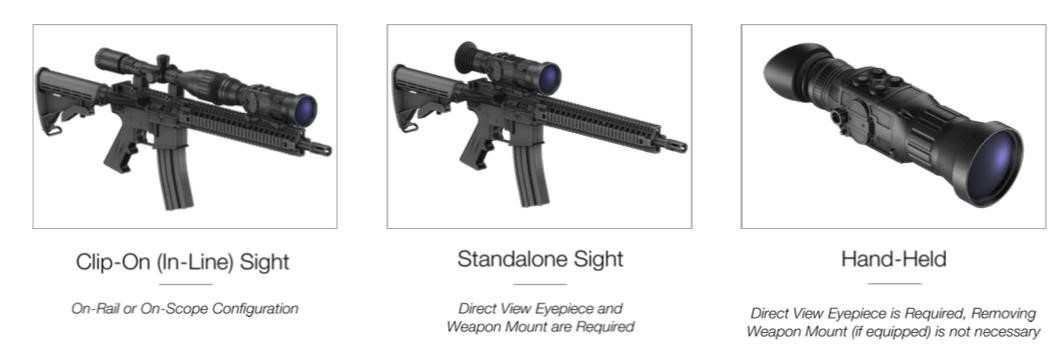

Every TI-GEAR-C675 Clip-On Sight can be used in 3 main configurations



$7,225.00 – $10,875.00

More information

TECHNICAL DATA

Optical Magnification 1X
Objective Lens System 75mm
Field of View 8.3°x6.2°
Focusing Range 3m .. Infinity
FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
FPA Resolution and Pitch 640×480, 17μm
FPA Sensitivity (NETD) <50mK
FPA Refresh Rate 50Hz
Digital Zoom 1X, 2X, 4X, 8X
Internal Display Full Size: 0.6-Inch Diagonal, AMOLED, Colour, 800×600
Imaging Modes Monochrome (White-Hot / Black-Hot) and 8 Colour Palettes
Shot-Initiated FOV Feature (SIF) Built-In Adjustable Shock Sensor
Digital Passive Stadiametric Rangefinder (SRF) Yes
Digital Detail Enhancement Feature (DDE) Yes
Wide Dynamic Range Feature (WDR) Yes
Stow Safety Feature (SSF) Yes
Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display) Optional: 3-Axis Sensors – Magnetometer, Accelerometer and Gyroscope
Integrated Compass Optional
Pitch / Roll / Azimuth Indications Optional
Real-Time Date-Time Stamp Yes: Simplified, Extended, DTG Formats
Digital Video Recorder with Real-Time Stamp Optional: Comes with removable 32GB microSD card
Electronic Reticles Can be Enabled for Standalone Sight Configuration: 8+8 Patterns, Easy Zeroing / Calibration
Detection Capability: Man (1.7×0.5m) / NATO Target (2.3×2.3m) 2500m / 3380m
Mounting to Dayscope On-Rail, On-Scope Direct, On-Scope Via Clamp/Adapter
Optimal Dayscope Magnification Range 3X .. 12X
Hand-Held / Tripod-Mounted Capability Yes: Hand-Held and Tripod-Mountable
Conversion to Standalone (Direct View) Sight Yes
User Profiles (Configurable) Yes: 8
Automatic/Manual Pixel Masking Yes
Reset to Factory Defaults Yes
External Video Feed Protection Yes
Automatic Power Down Control User-Configurable: 10 .. 60 minutes of inactivity
Accepted Batteries 2 (two) CR123 of Any Type: Lithium / Rechargeable
Universal Port Video-Out, Remote Control and External Power (4VDC .. 15VDC)
Battery Life on 2x CR123 Up to 7 Hours
Environmental Protection Min. IP67, Nitrogen-Purged Housing
Dimensions 193 x 66 x 66 mm
Weight 620 grams
Operating Temperature -40°C .. +50°C
Warranty 7 Years, Limited
Export Available Worldwide (Canadian Export Permit Required. GSCI provides assistance in obtaining the Permit)

STANDARD EQUIPMENT: WHAT’S IN THE BOX
1 Thermal Imaging Clip-On Sight
2 Clip-On Eyepiece with Rubber Shroud (Attached)
3 Front Lens Protective Cover (Attached)
4 Dual Lever Adjustable Rifle Mount DLM (Picatinny, with fine-tune knobs for tolerance adjustments)
5 USB Power Cable
6 Video-Out Cable
7 Soft Carrying Pouch
8 User Manual
9 Quick Reference Card
10 7-Year Warranty with Activation Form
11 Waterproof Hard Carrying Case
12 Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)
OPTIONAL EQUIPMENT
A Universal Remote Control Unit TRC-120 (Comes with connection cable)
B Universal Multi-Voltage Battery Pack MVP-240 (Comes with connection cable)
C Built-In Digital Video Recorder GS-DVR-INT (Comes with 32GB microSD card and SD adapter)
D External Digital Video Recorder GS-EDVR (Comes with set of cables and 32GB SD card)
E Portable Head-Mounted Display HMD-800-MOD (streams thermal video directly from the device, comes with connection cable)
F Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display), 3-Axis Sensors for Compass Reading, Inclinometer/Pitch Reading, and Level/Roll Reading
G Heavy-Duty Quick Release Rifle Mount MAK-QR-BLASER (Blaser, Adapter included)
H Heavy-Duty Quick Release Rifle Mount MAK-QR-PICATINNY (PICATINNY, Adapter included)
I Heavy-Duty Rifle Mount MAK-PICATINNY (PICATINNY, Adapter included, Allen Key Included)
J Adapter for MAK Mount: Regular Length (ADAPTER-REG) or Extended Length (ADAPTER-EXT)
K Direct View Eyepiece GSCI-LR-EYEPIECE
L Recoil Absorbing System GSCI-RMS-50, Picatinny
M Day Scope Adapter Clamp for COA for direct mounting onto daytime optics, CO-DSA (various sizes available)
N Long Eyerelief Rubber Eyecup GSCI-EYECUP-LR

Important: For any question regarding optional equipment you can write us your question.We try to reply as quickly as possible, but it may take us some time to reply back to you depending on the contents of your question
