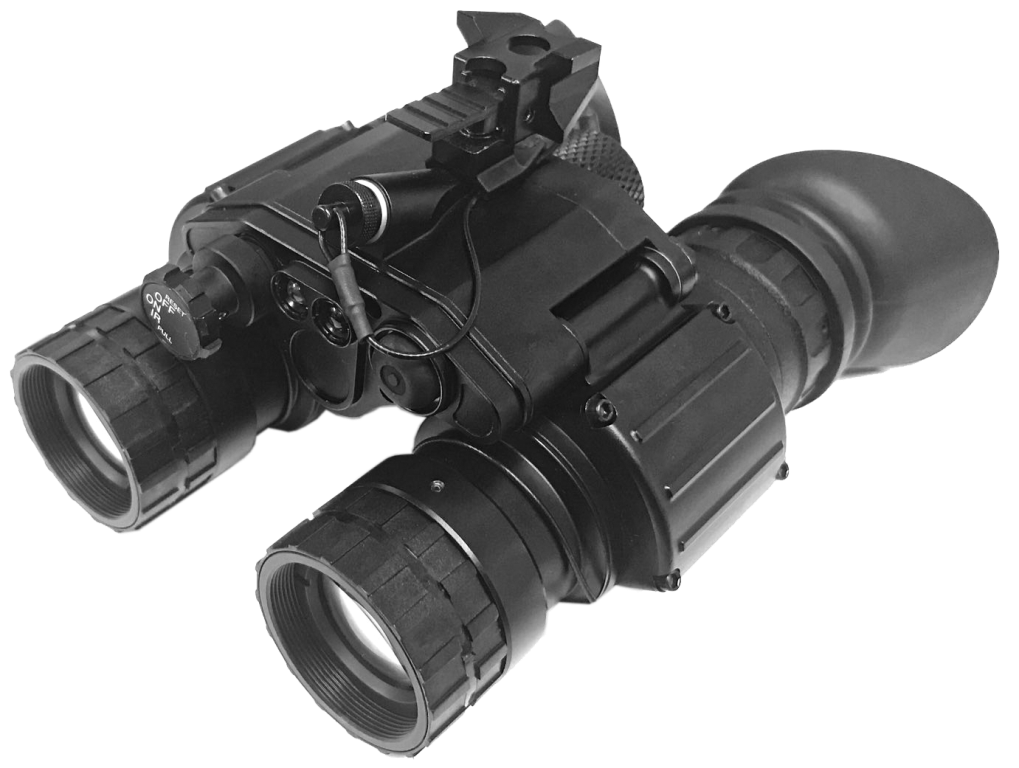

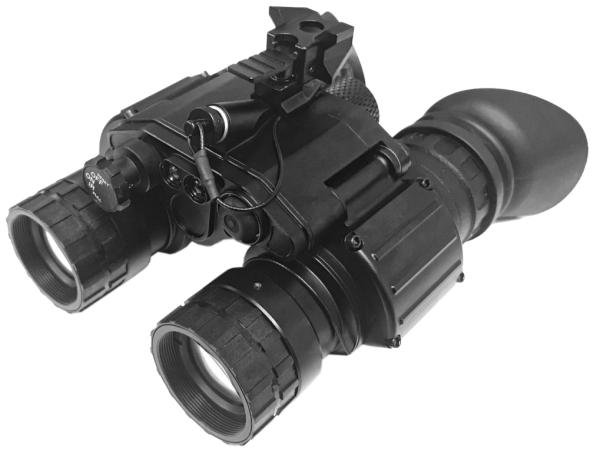

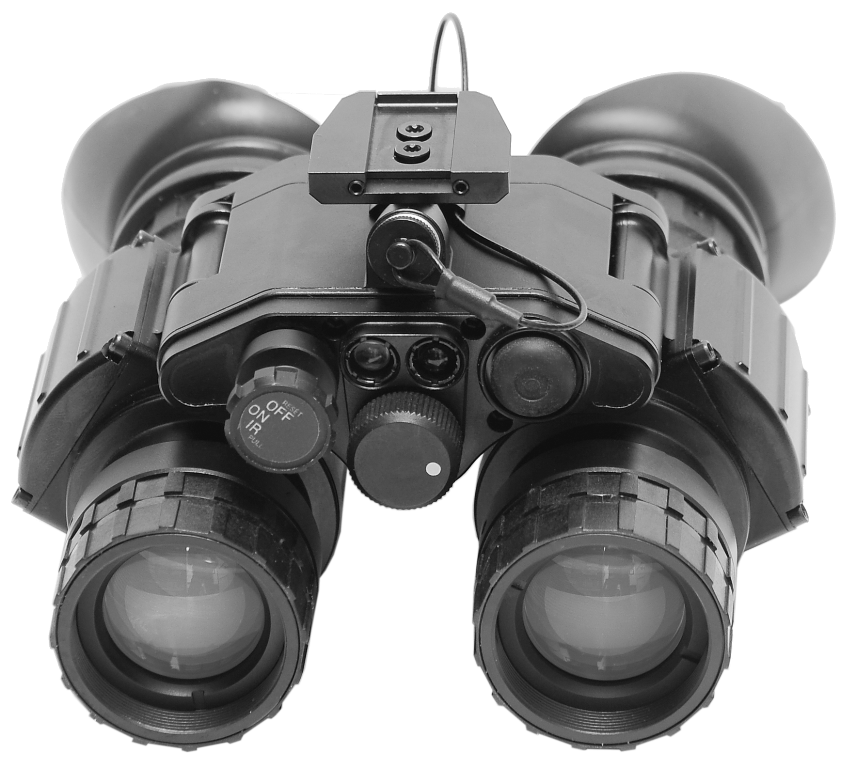

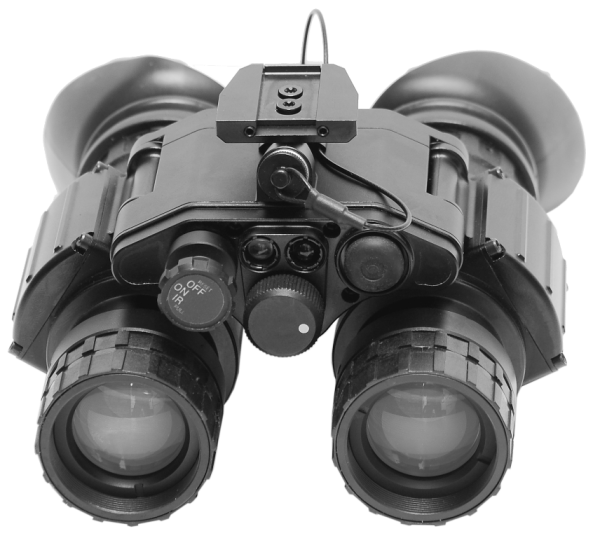

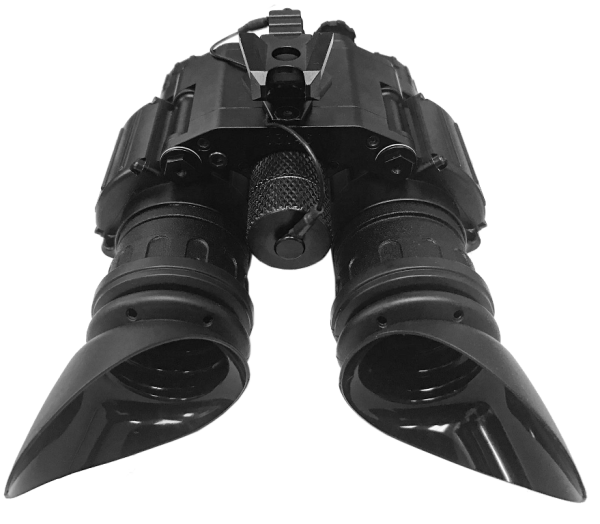

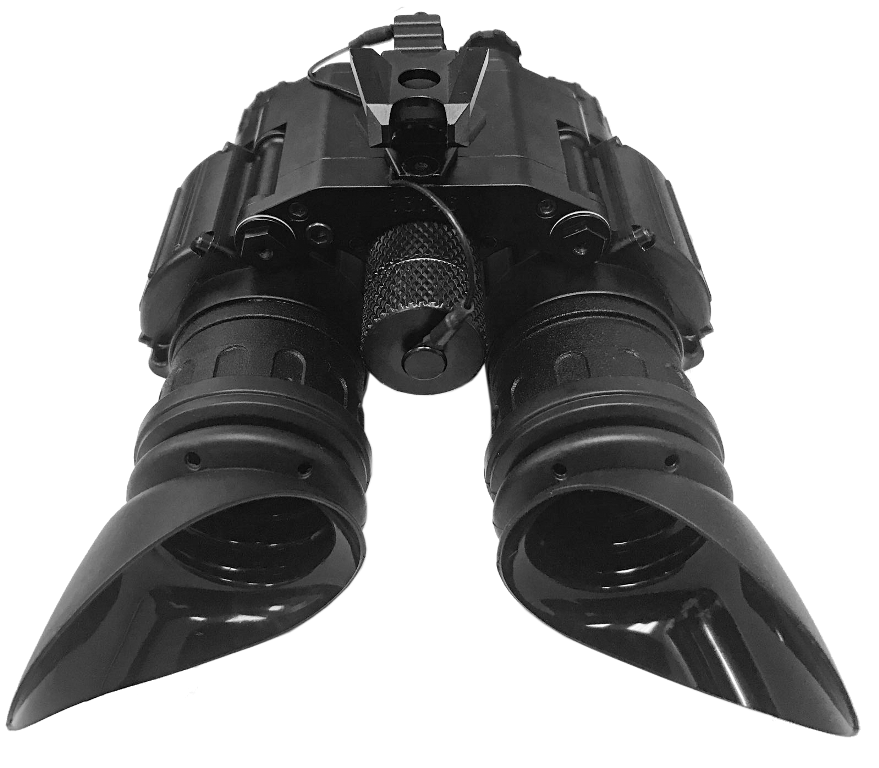

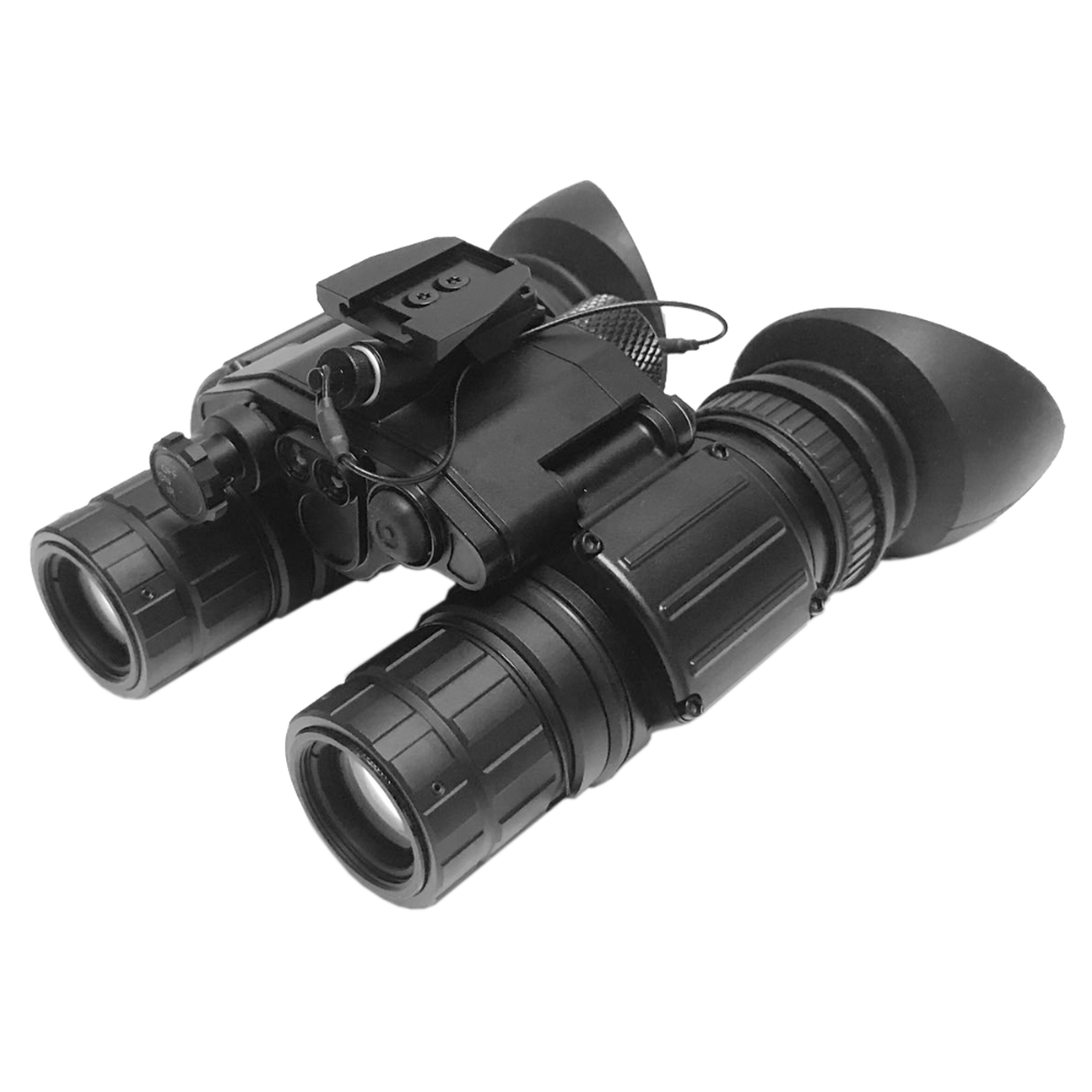

PVS-31C-MOD Dual-Tube Night Vision Goggles PVS-31C-MOD

Loading...

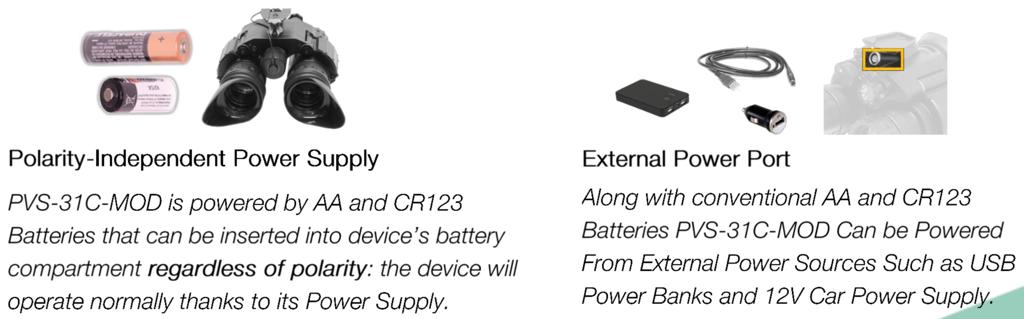

PVS-31C-MOD is a versatile and easy-to-operate night vision dual-tube binocular-goggle unit with superior depth perception. It is mostly used for conducting all kinds tactical operations in both rural and urban environments. The PVS-31C-MOD combines ergonomic design with improved functionality and accommodates features such as a dedicated Instant-On-IR button: this enables to quickly and momentarily engage IR illuminator without having to operate the switch to communicate between crew members using Morse code. The connector located at the front of PVS-31C-MOD is used to supply power to the unit from almost any power source: external battery pack, USB power bank, 12V car socket and so on. The device can also be powered by AA or CR123 battery that can be installed regardless of polarity – it is just one less thing to worry about in the dark environment.

KEY FEATURES

¨ Universal Night Operations Tool

¨ Unique Safety Features

¨ Extended Range Observation

¨ High Situational Awareness

¨ Accepts External Power Sources

¨ Preferred choice of NATO forces

MAIN APPLICATIONS

¨ Defence

¨ Security

¨ Surveillance

¨ Border Patrol

¨ Navigation

¨ Reconnaissance

$5,165.00$11,753.00

More information

TECHNICAL DATA
Optical Magnification 1X
Objective Lens Focal Length 27mm
Field of View (FOV) 40° (30° for Gen 2+ Models)
Focusing Range 0.25m .. Infinity
Diopter Adjustment Range -6 .. +4
Interpupillary Adjustment 50mm .. 90mm
Built-In IR Illuminator Yes

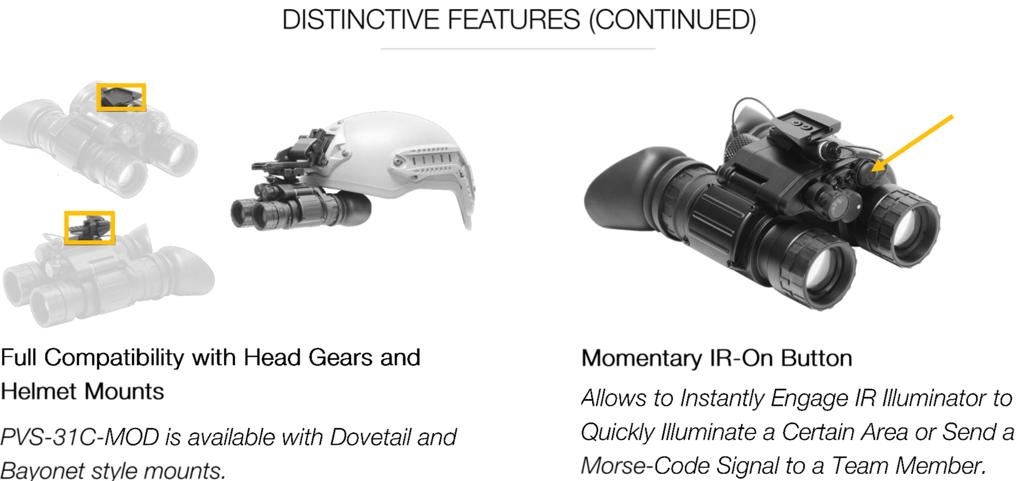

Momentary IR-On Button Yes
IR-On Indicator Yes
Manual Gain Control (MGC) Optional *
MIL-SPEC Switch Yes
Bright Light Protection Yes
Automatic Light Overload Shut-Off System Yes
Low Battery Indicator Yes

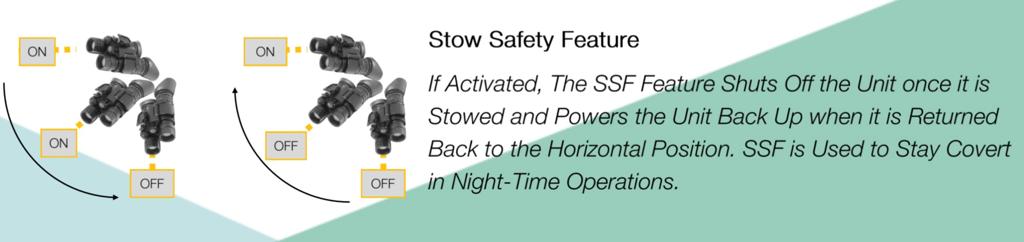

Stow Safety Feature Yes

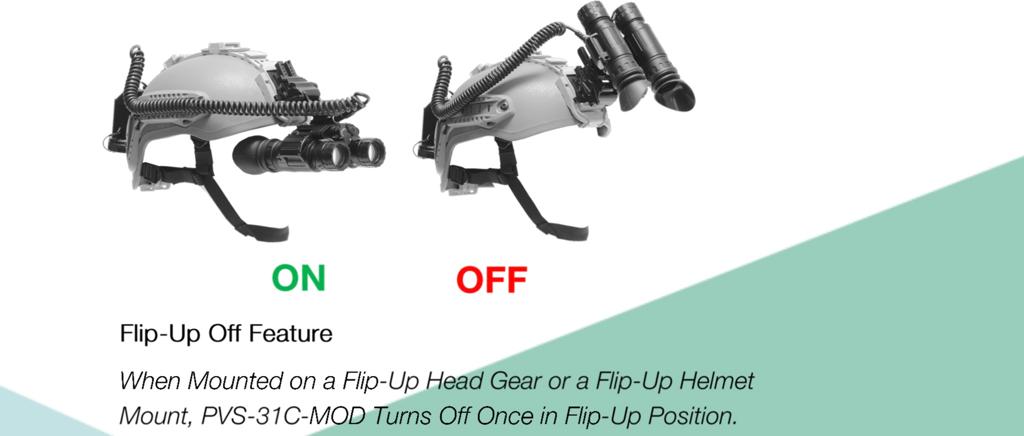

Flip-Up-Off Feature Yes

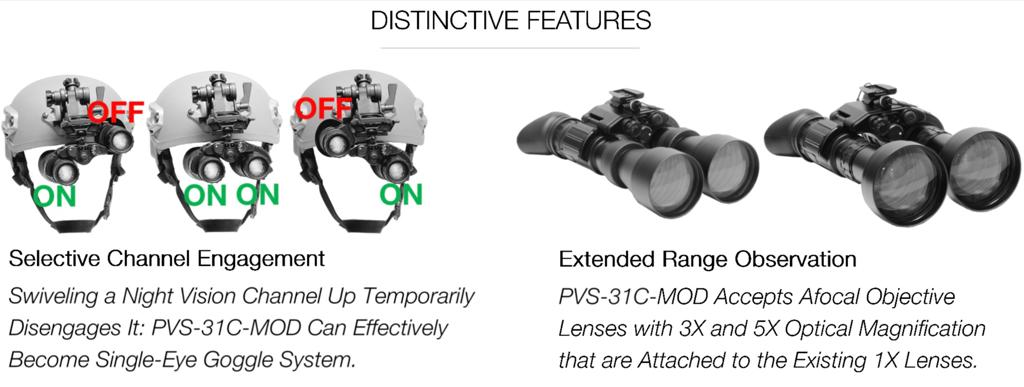

Selective Channel Engagement Yes
Power Source 1pc AA or 1pc CR123
Any Polarity Battery Insertion Yes
Battery Life 40 Hours
External Power Supply 4VDC .. 15VDC
Dimensions 112x105x70mm
Weight 650 grams
Operating Temperature -40°C .. +50°C
Warranty 7 Years, Limited
Export Worldwide **

** Canadian Export Permit Required. GSCI provides assistance in obtaining the Permit.

IMAGE INTENSIFIER TUBES: GEN 2+, GEN 3, ECHO, 4G

Autogating and White Phosphor options are available with selected tubes. Contact us for more details. ECHO, and 4G are the registered trademarks of Photonis Technologies S.A.S.

STANDARD EQUIPMENT: WHAT’S IN THE BOX
1 Dual-Tube Night Vision Goggles with Bayonet or Dovetail Bracket Installed
2 Rubber Eyecups (2 Installed on the device) + 2 Spare with Retaining Rings
3 Demist Shield (2pcs)
4 Sacrificial Window (2pcs)
5 Stow Safety Feature (Integrated)
6 AA Battery Extension Adapter (Installed on the device)
7 Rubber Daytime Filter with Training Hole (Installed on the device)
8 Adjustment Kit: Allen Key + Mini-Wrench
9 USB Power Cable
10 Neck Cord
11 Soft Carrying Pouch
12 User Manual
13 Waterproof Hard Case (Optional for Gen 2+ Models)
14 7-Year Warranty with Activation Form
15 Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)
OPTIONAL EQUIPMENT
A Non-Flip-Up Head Gear PHG-7 (Bayonet Type only)
B Advanced Low-Profile Flip-Up Helmet Mount HM-714LP-SR-P: Shroud-Ready Mount. Adjustable Bayonet Socket. Comes with Allen Keys Set.
C Advanced Low-Profile Flip-Up Helmet Mount HM-714LP-SR-D: Shroud-Ready Mount. Adjustable Dovetail Socket. Comes with Allen Keys Set.
D Advanced Helmet Mount Harness HMH-1
E Tactical Infrared Illuminator IR250S. Kit includes IR250S (850nm), Remote Control, Picatinny Mount

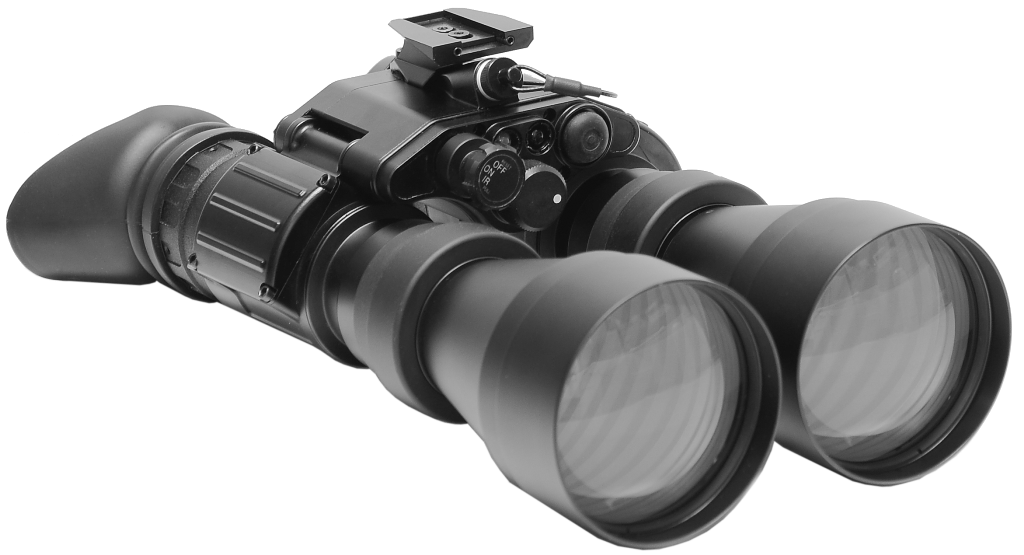

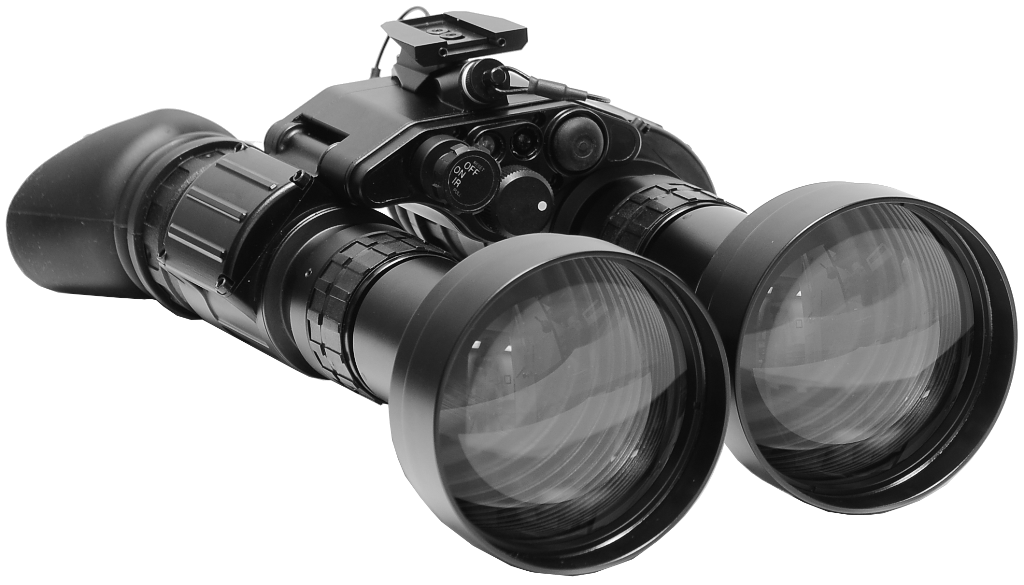

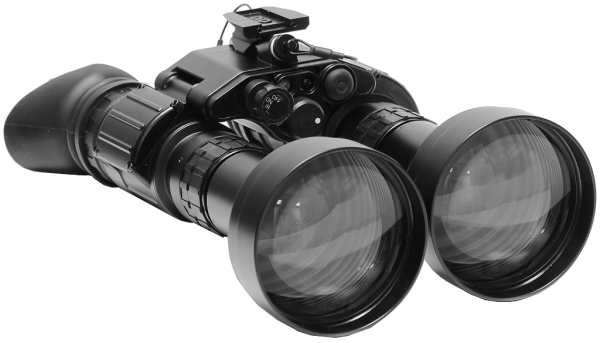

F 3X Magnification Afocal Add-On Objective Lens SL-3: Snap-On or Screw-In
G 5X Magnification Afocal Add-On Objective Lens SL-5: Snap-On or Screw-In
H SLR/DSLR Camera Adapter CA-37/52
I Smartphone Camera Adapter CAS-14

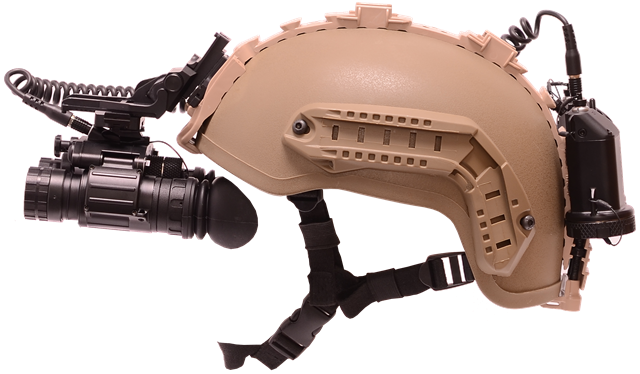

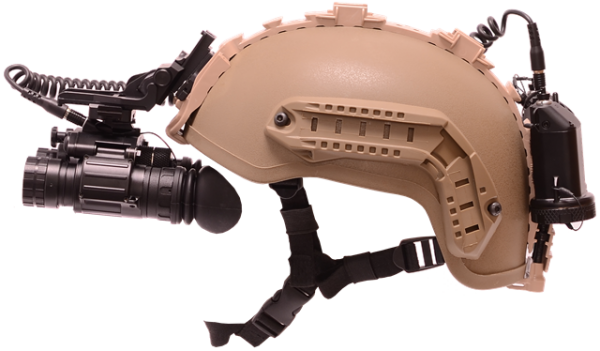

J Universal Multi-Voltage Battery Pack MVP-240
K Digital HD Recorder with Built-In Display and Video Output NVR-714-D

Important: For any question regarding optional equipment you can write us your question.We try to reply as quickly as possible, but it may take us some time to reply back to you depending on the contents of your question
