MULTI-PURPOSE THERMAL RIFLESCOPE TI-GEAR-S650F

Loading...

The TI-GEAR-S650F is the professional-grade thermal weapon sight for aiming and engagement on a wide variety of firearms at medium-range distances. Ideal for both small, large-size caliber rifles, machine guns, whether single or repetitive shooting. It is also a great tool for reconnaissance and tactical surveillance.

The latest generation silent and Auto-NUC sensor is at the base of the TI-GEAR-S650F. GSCI proprietary hardware and software solutions are built around the sensor and offer exceptional image quality along with unique tools for added tactical advantage and user safety.

The TI-GEAR-S650F is fully dust- and waterproof, meets and exceeds modern standards. The TI-GEAR-S650F is designed for both professional users and also firearms enthusiasts. It is a robust, reliable tool for long-term, intensive use in any environment, in any lighting or weather conditions.

* Sensor Resolution And Lens Size:

$7,170.00 – $10,240.00

More information

Optical Magnification 2X
Objective Lens System 50mm
Field of View 12.4°x9.3°
Focusing Range 1.5m .. Infinity
Diopter Adjustment Range -6 .. +4
Eyerelief Min. 50mm
FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
FPA Resolution and Pitch 640×480, 17μm
FPA Sensitivity (NETD) <50mK
FPA Refresh Rate 50Hz
Digital Zoom 1X, 2X, 4X, 8X
Internal Display Full Size: 0.6-Inch Diagonal, AMOLED, Colour, 800×600
Imaging Modes Monochrome (White-Hot / Black-Hot) and Multiple Colour Palettes
Shot-Initiated FOV Feature (SIF) Built-In Adjustable Shock Sensor
Digital Passive Stadiametric Rangefinder (SRF) Yes
Digital Detail Enhancement Feature (DDE) Yes
Wide Dynamic Range Feature (WDR) Yes
Stow Safety Feature (SSF) Yes
Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display) Optional: 3-Axis Sensors – Magnetometer, Accelerometer and Gyroscope
Integrated Compass Optional
Pitch / Roll / Azimuth Indications Optional
Real-Time Date-Time Stamp Yes: Simplified, Extended, DTG Formats
Digital Video Recorder with Real-Time Stamp Optional: Comes with removable 32GB microSD card
Electronic Reticles 8+8 Patterns, Easy Zeroing / Calibration
Detection Capability: Man (1.7×0.5m) / NATO Target (2.3×2.3m) 1660m / 2250m

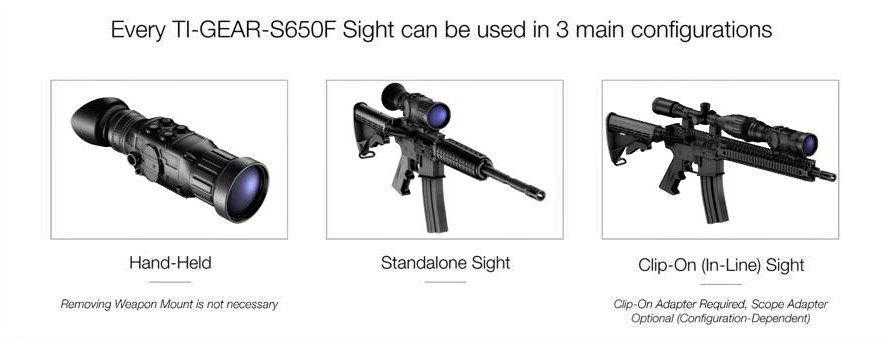

Hand-Held Configuration Yes

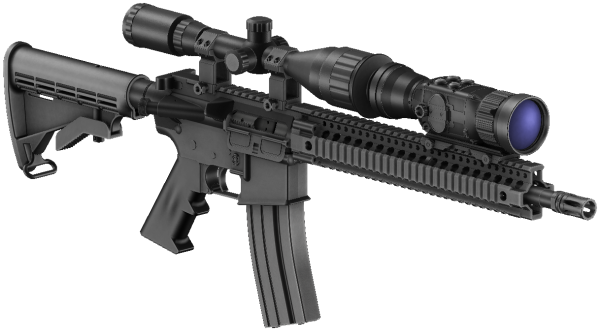

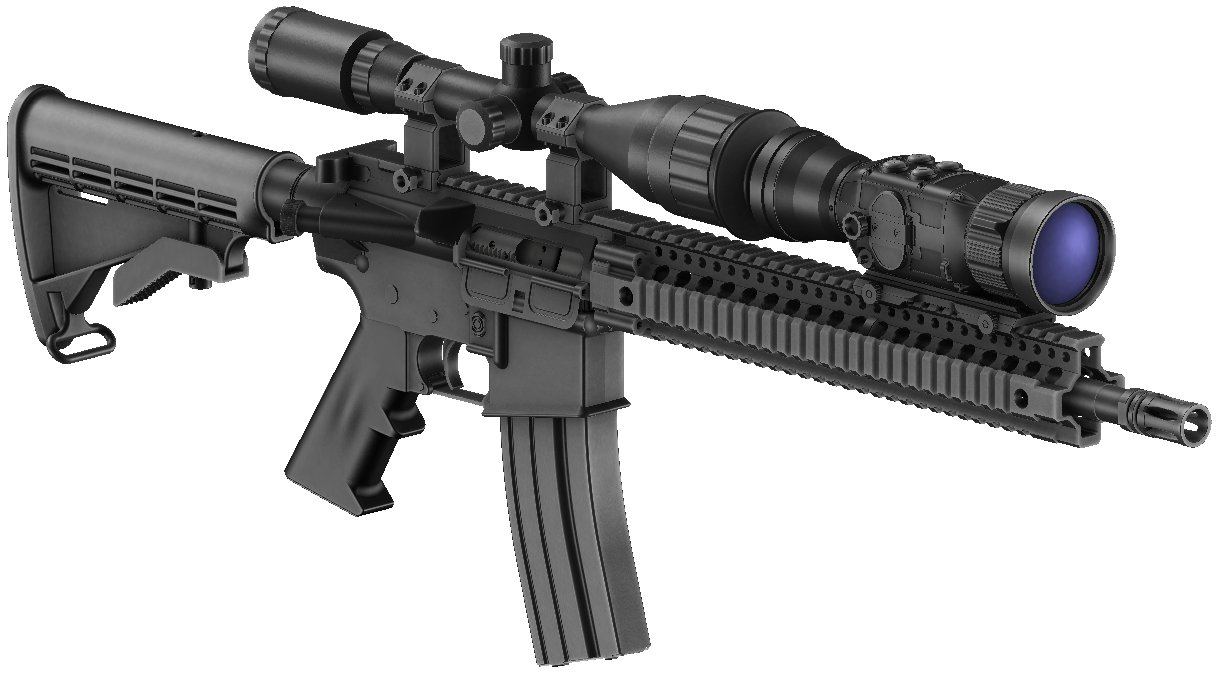

Conversion to Clip-On (In-Line) Sight Yes
Tripod-Mountable Yes
User Profiles (Configurable) Yes: 8
Automatic/Manual Pixel Masking Yes
Reset to Factory Defaults Yes
External Video Feed Protection Yes
Automatic Power Down Control User-Configurable: 10 .. 60 minutes of inactivity
Accepted Batteries 2 (two) CR123 of Any Type: Lithium / Rechargeable
Universal Port Video-Out, Remote Control and External Power (4VDC .. 15VDC)
Battery Life on 2x CR123 Up to 7 Hours
Environmental Protection Fully Waterproof
Dimensions 172 x 60 x 60 mm
Weight 475 grams
Operating Temperature -40°C .. +50°C
Warranty 7 Years, Limited
Export Available Worldwide (Canadian Export Permit Required. GSCI provides assistance in obtaining the Permit)

STANDARD EQUIPMENT: WHAT’S IN THE BOX
1 Thermal Imaging Sight
2 Long Eyerelief Rubber Eyecup (Attached)
3 Front Lens Protective Cover (Attached)
4 Dual Lever Adjustable Rifle Mount DLM (Picatinny, with fine-tune knobs for tolerance adjustments)
5 Demist Shield
6 USB Power Cable
7 Video-Out Cable
8 Soft Carrying Pouch
9 User Manual
10 Quick Reference Card
11 7-Year Warranty with Activation Form
12 Waterproof Hard Carrying Case
13 Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)
OPTIONAL EQUIPMENT
A Universal Remote Control Unit TRC-120 (Comes with connection cable)
B Universal Multi-Voltage Battery Pack MVP-240 (Comes with connection cable)
C Built-In Digital Video Recorder GS-DVR-INT (Comes with 32GB microSD card and SD adapter)
D External Digital Video Recorder GS-EDVR (Comes with set of cables and 32GB SD card)
E Portable Head-Mounted Display HMD-800-MOD (streams thermal video directly from the device, comes with connection cable)
F Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display), 3-Axis Sensors for Compass Reading, Inclinometer/Pitch Reading, and Level/Roll Reading
G Heavy-Duty Quick Release Rifle Mount MAK-QR-BLASER (Blaser, Adapter included)
H Heavy-Duty Quick Release Rifle Mount MAK-QR-PICATINNY (PICATINNY, Adapter included)
I Heavy-Duty Rifle Mount MAK-PICATINNY (PICATINNY, Adapter included, Allen Key Included)
J Adapter for MAK Mount: Regular Length (ADAPTER-REG) or Extended Length (ADAPTER-EXT)
K Clip-On Adapter COA
L Recoil Absorbing System GSCI-RMS-50, Picatinny
M Day Scope Adapter Clamp for COA for direct mounting onto daytime optics, CO-DSA (various sizes available)

Important: For any question regarding optional equipment you can write us your question.We try to reply as quickly as possible, but it may take us some time to reply back to you depending on the contents of your question
