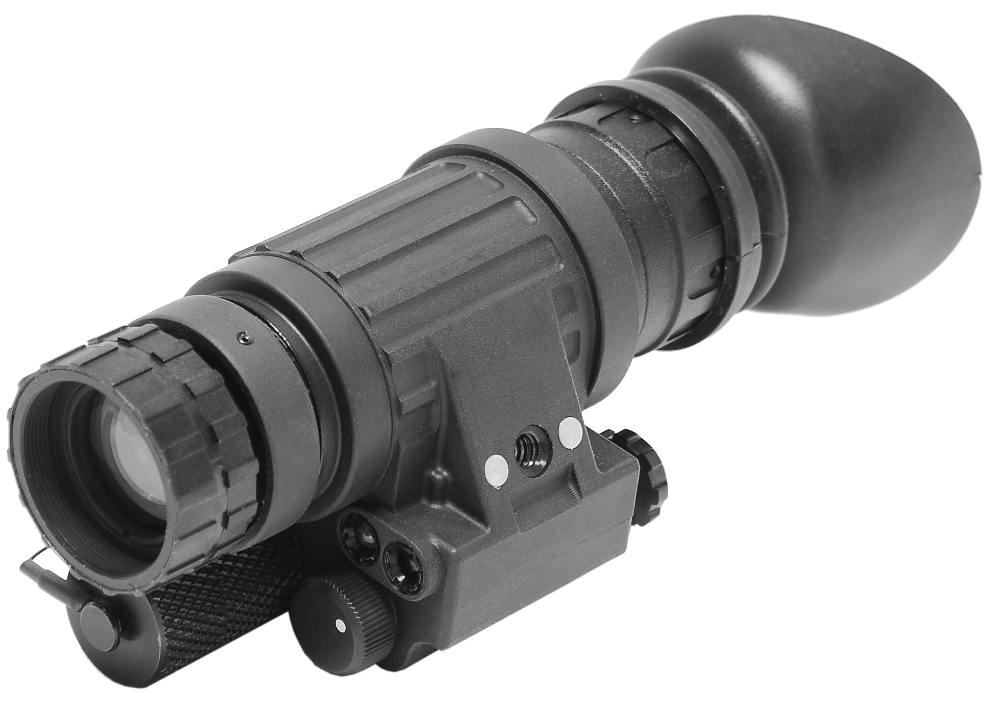

ADVANCED TACTICAL NIGHT VISION MONOCULAR PVS-14C

Loading...

The legendary PVS-14C is a great choice for conducting combat operations, including dismounted terrain navigation in extremely low light conditions. The highly versatile PVS-14C system can be used as a hand-held or hands-free single eye goggle for increased mobility and tactical awareness, or as a night vision close-quarters weapon sight. Lightweight, rugged and waterproof, the PVS-14C is a powerful performer for use in confined as well as open spaces, allowing the user to retain their night adapted vision in one eye while viewing their surroundings through the illuminated eyepiece of the PVS-14C. The device is powered by AA or CR123 battery that can be installed regardless of polarity – it is just one less thing to worry about in the dark environment.

KEY FEATURES

¨ Universal Night Operations Tool

¨ Multi-Use System Design

¨ External Power Port

¨ Unique Safety Features

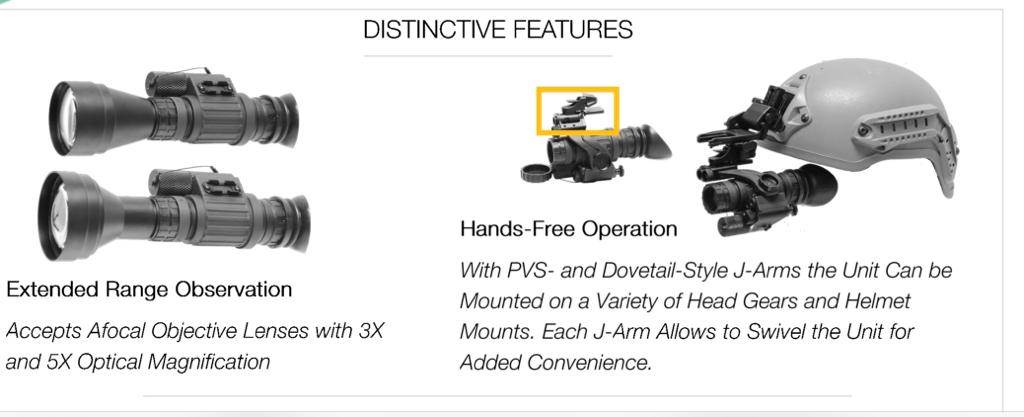

¨ Extended Range Observation

¨ High Situational Awareness

¨ Preferred choice of NATO forces

MAIN APPLICATIONS

¨ Defence

¨ Security

¨ Surveillance

¨ Border Patrol

¨ Navigation

¨ Reconnaissance





$2,740.00$6,400.00

More information

TECHNICAL DATA
Optical Magnification 1X
Objective Lens 27mm
Field of View (FOV) 40° (30° for Gen 2 Models)
Focusing Range 0.25m .. Infinity
Extended Eyerelief 30 .. 50mm
Diopter Adjustment Range -6 .. +4
Built-In IR Illuminator Yes: 850 nm
IR-On Indicator Yes: concealed into FOV
MIL-SPEC Pull-Action Switch Yes
Manual Gain Control Yes: Optional
Bright Light Protection Yes
Automatic Light Overload Shut-Off Sensor Built-In
Low Battery Indicator Yes: concealed into FOV

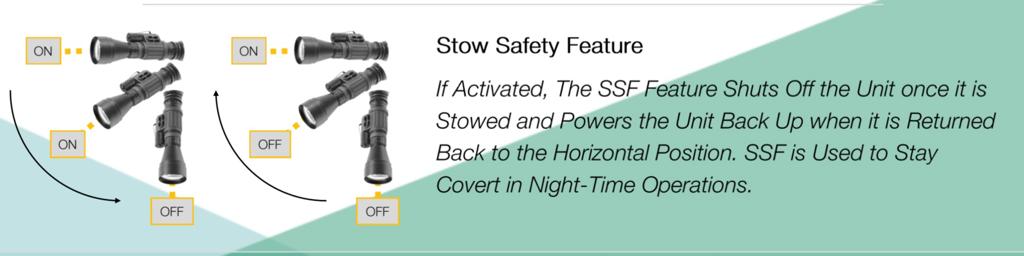

Stow Safety Feature Yes

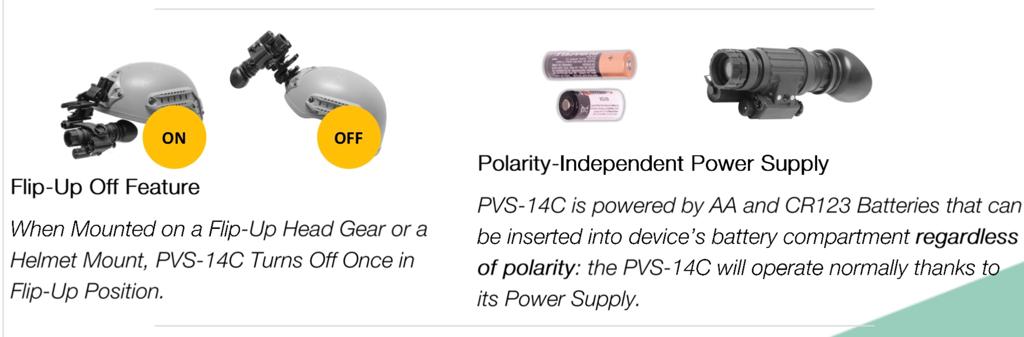

Flip-Up-Off Feature Yes
Power Source 1pc AA or 1pc CR123
External Power Port Optional: 4VDC .. 15VDC
Any Polarity Battery Protection Built-In
Battery Life 40 Hours
Dimensions 110x65x55mm
Mass <330 grams
Operating Temperature -40°C .. +55°C
Export Worldwide: * Canadian Export Permit Required. GSCI provides assistance in obtaining the Permit.



IMAGE INTENSIFIER TUBES:  GEN 2+, GEN 3, ECHO, 4G

Autogating and White Phosphor options are available with selected tubes. Contact us for more details.

ECHO and 4G are the registered trademarks of Photonis Technologies S.A.S.

STANDARD EQUIPMENT: WHAT’S IN THE BOX
1 Night Vision Monocular
2 Rubber Eyecups (1 Installed on the device) + 1 Spare with Retaining Ring
3 Demist Shield
4 Sacrificial Window
5 Stow Safety Feature (Integrated)
6 AA Battery Extension Adapter (Installed on the device)
7 Rubber Daytime Filter with Training Hole (Installed on the device)
8 Neck Cord
9 Soft Carrying Pouch
10 User Manual
11 Waterproof Hard Case (Optional for Gen 2+ Models)
12 7-Year Warranty with Activation Form
13 Cleaning Kit (3-in-1 Multi-Pen + Soft Cleaning Cloth)

OPTIONAL EQUIPMENT
A J-Arm Interface: Bayonet (J-ARM-P) or Adjustable Dovetail (J-ARM-AD)
B Standard Non-Flip-Up Head Gear PHG-7 (Bayonet Type only)
C Advanced Helmet Harness HMH-1 for MICH / ACH Helmets

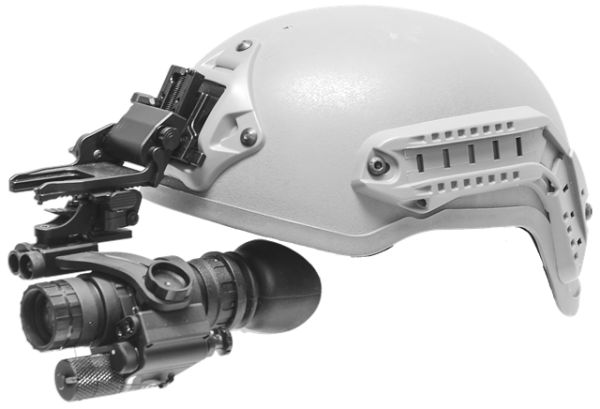

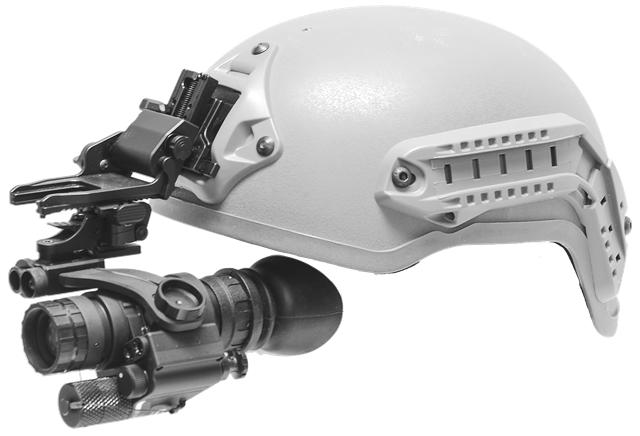

D Advanced Low-Profile Flip-Up Helmet Mount HM-714LP-SR-P: Shroud-Ready Mount. Adjustable Bayonet Socket. Comes with Allen Keys Set.

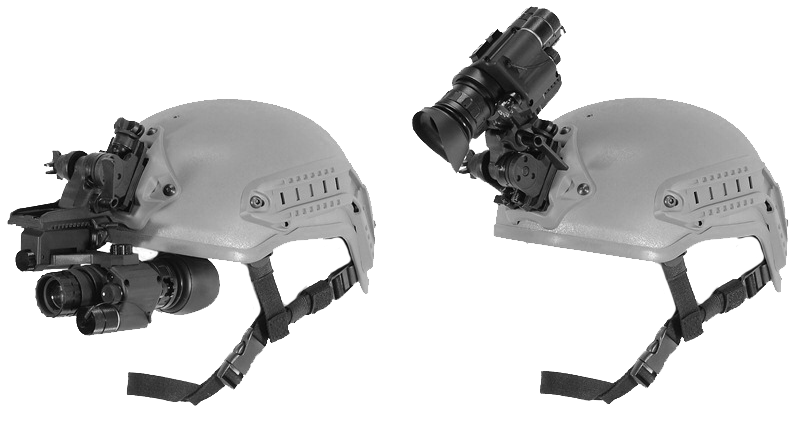

E Advanced Low-Profile Flip-Up Helmet Mount HM-714LP-SR-D: Shroud-Ready Mount. Adjustable Dovetail Socket. Comes with Allen Keys Set.
F Adjustable Dual-Quick Release Weapon Mount DQRM-14

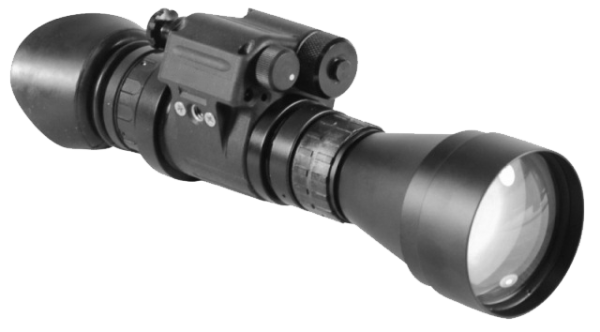

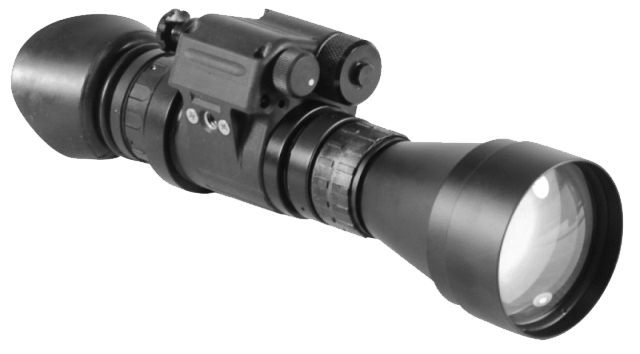

G 3X Magnification Afocal Add-On Objective Lens SL-3: Snap-On or Screw-In

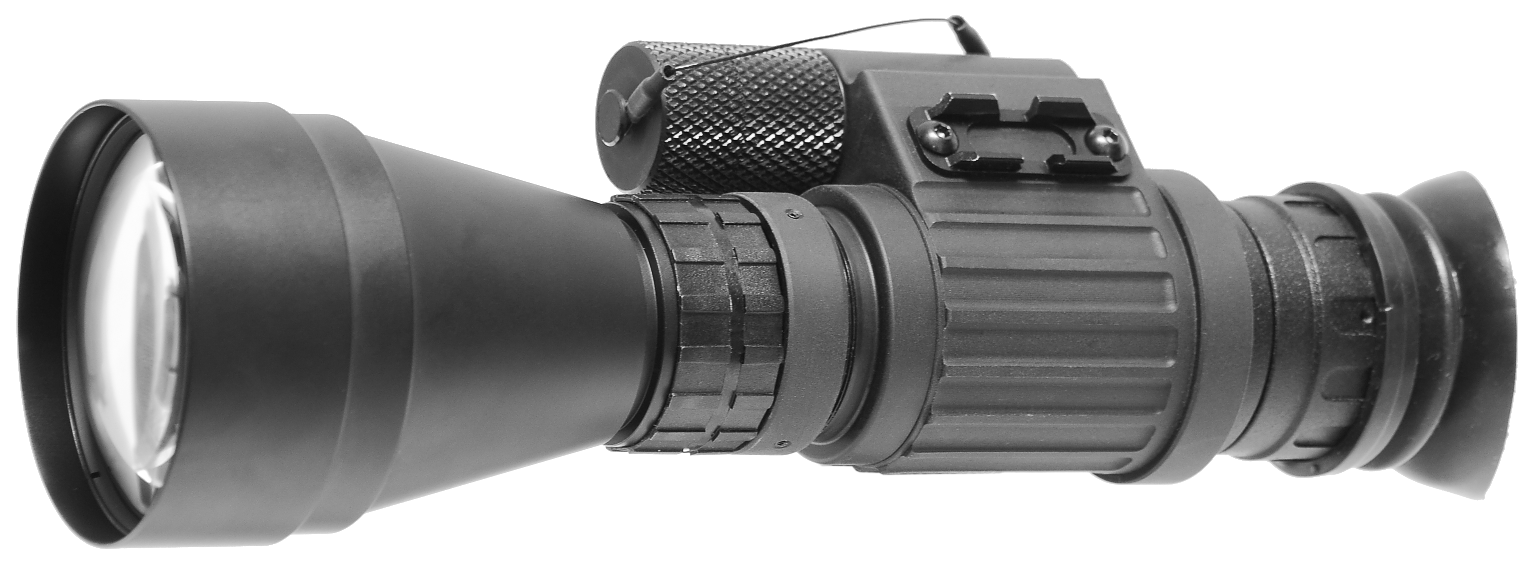

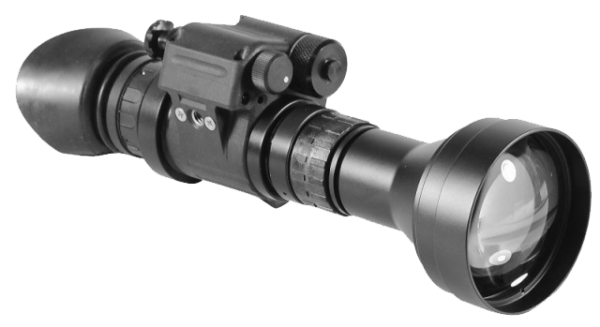

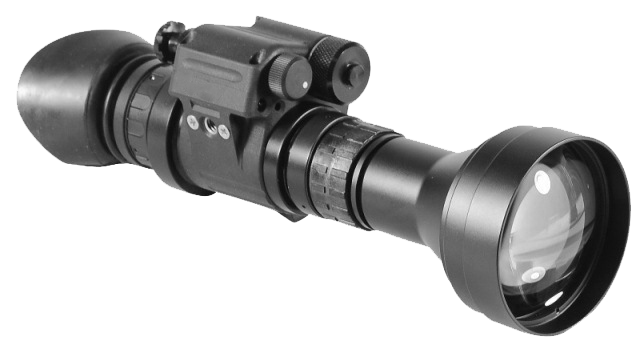

H 5X Magnification Afocal Add-On Objective Lens SL-5: Snap-On or Screw-In

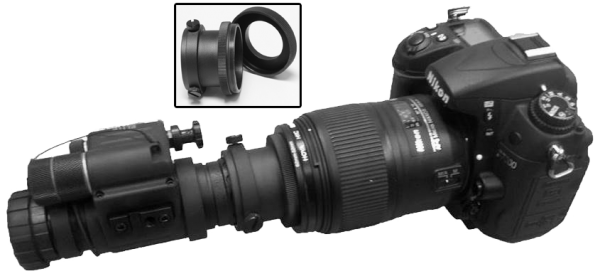

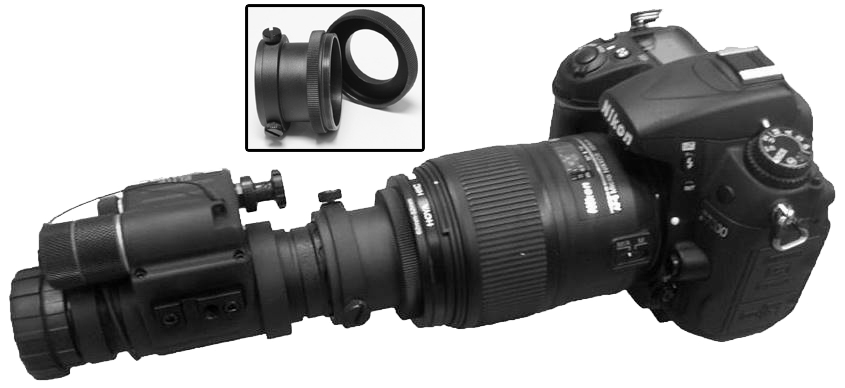

I SLR/DSLR Camera Adapter CA-37/52
J Smartphone Camera Adapter CAS-14
K Universal Multi-Voltage Battery Pack MVP-240
L Digital HD Recorder with Built-In Display and Video Output NVR-714-S

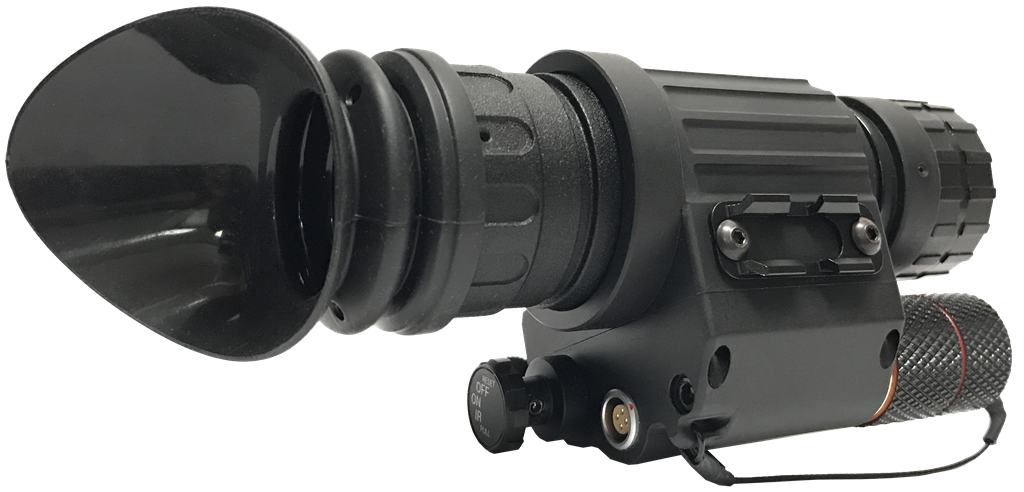

M USB Power Cable (for MOD versions)
N Dual Bridge Mount DB-14 (needed to mount two PVS-14C monoculars side by side to one helmet mount)
O Tactical Infrared Illuminator IR-250S. Kit Includes IR-250S (850nm), Remote Control, Picatinny Mount

Important: For any question regarding optional equipment you can write us your question.We try to reply as quickly as possible, but it may take us some time to reply back to you depending on the contents of your question
